怡安医疗
静脉输液耗材、废液收集系统、呼吸治疗与麻醉
| Technical Specification | Spec. |
|---|---|
| Flow Rate at Gravity | 170ml / min |
| Backpressure resistance | 40 psi |
| Power Injection | 325 psi (Dynamic) |
| Priming Volume | 0.07 ml |
| Residual Volume | 0.07 ml |
| Reflux Volume | 0.003ml |
| Number of Activation | 600 |
| Duration of Use | 7 days |
| MRI Compatibility | YES |
| Free of | DEHP, Latex, PVC |
| Drug Compatibility | Spec. |
|---|---|
| Alcohol | YES |
| Lipids | YES |
| Chlorhexidine | YES |
| Antineoplastic Drugs | YES |
| Blood Compatibility | YES |
| Model | Spec. | Burette | Male Luer |
|---|---|---|---|
| CIB-100NSE | 3.1*4.1*2200mm, Roller Clamp | 100ml | Slip |
| CIB-100NLE | 3.1*4.1*2200mm, Roller Clamp | 100ml | Lock |
| CIB-120NSE | 3.1*4.1*2200mm, Roller Clamp | 120ml | Slip |
| CIB-120NLE | 3.1*4.1*2200mm, Roller Clamp | 120ml | Lock |
| CIB-150NSE | 3.1*4.1*2200mm, Roller Clamp | 150ml | Slip |
| CIB-150NLE | 3.1*4.1*2200mm, Roller Clamp | 150ml | Lock |
| Model | Spec. | Approx. Priming Volume (ml) | Male Luer |
|---|---|---|---|
| CIV-180NSE | 3.1*4.1*1920mm, Roller Clamp | 20 | Slip |
| CIV-180NLE | 3.1*4.1*1920mm, Roller Clamp | 20 | Rotating |
| CIV-165NSM | 3.1*4.1*1920mm, Roller Clamp | 60 | Slip |
| CIV-165NLM | 3.1*4.1*1920mm, Roller Clamp | 60 | Rotating |
| Model | Spec. | Approx. Priming Volume (ml) | Male Luer |
|---|---|---|---|
| CET-TS02L0 | 3.1*4.1*150mm, Pinch Clamp | 1.27 | Slip |
| CET-TS02S0 | 3.1*4.1*150mm, Pinch Clamp | 1.27 | Rotating |
| CET-SS02L0 | 1.27*2.4*150mm, Pinch Clamp | 0.34 | Slip |
| CET-SS02S0 | 1.27*2.4*150mm, Pinch Clamp | 0.34 | Rotating |
| Model | Spec. | Approx. Priming Volume (ml) | Male Luer |
|---|---|---|---|
| CET-TD02L0 | 3.1*4.1*150mm, Pinch Clamp | 1.85 | Slip |
| CET-TD02S0 | 3.1*4.1*150mm, Pinch Clamp | 1.85 | Rotating |
| CET-SD02L0 | 1.27*2.4*150mm, Pinch Clamp | 0.47 | Slip |
| CET-SD02S0 | 1.27*2.4*150mm, Pinch Clamp | 0.47 | Rotating |
| Model | Spec. | Approx. Priming Volume (ml) | Male Luer |
|---|---|---|---|
| CET-TM32L0 | Tubing 3.1*4.1*150mm, Pinch / Slide Clamp | 2.23 | Slip |
| CET-TM32S0 | Tubing 3.1*4.1*150mm, Pinch / Slide Clamp | 2.23 | Rotating |
| CET-SM32L0 | Tubing 1.27*2.4*150mm, Pinch / Slide Clamp | 0.65 | Slip / Rotating |
| Model | Spec. | Approx. Priming Volume (ml) | Male Luer |
|---|---|---|---|
| CET-TM42L0 | 3.1*4.1*190mm, Pinch Clamp | 3.79 | Slip |
| CET-TM42S0 | 3.1*4.1*190mm, Pinch Clamp | 3.79 | Rotating |
| CET-SM42L0 | 1.27*2.4*190mm, Pinch Clamp | 1.16 | Slip |
| CET-SM42S0 | 1.27*2.4*190mm, Pinch Clamp | 1.16 | Rotating |
| Model | Spec. | Approx. Priming Volume (ml) | Male Luer |
|---|---|---|---|
| CET-TY10L0 | 2.3*4.1*220mm, Slide Clamp | 1.58 | Slip |
| CET-TY10S0 | 2.3*4.1*220mm, Slide Clamp | 1.58 | Rotating |
| CET-TY20L0 | 2.3*4.1*2200mm, Slide Clamp | 1.10 | Slip |
| CET-TY20S0 | 2.3*4.1*2200mm, Slide Clamp | 1.10 | Rotating |
| CET-SY10L0 | 1.27*2.4*220mm, Slide Clamp | 0.39 | Slip |
| CET-SY10S0 | 1.27*2.4*220mm, Slide Clamp | 0.39 | Rotating |
| Model | Spec. | Approx. Priming Volume (ml) | Male Luer |
|---|---|---|---|
| CIC-006SN | Neeldeless Connector with cap | 0.07 | Rotating |
| CIC-010SN | 3-Way Stopcock with 1pc needleless connector | 0.37 | Rotating |
| CIC-011SN | Stopcock with 2pc needleless connector | 0.44 | Rotating |
| CVP-004 | 3-Way Stopcock with cap | 0.30 | Rotating |
| Model | Spec. | Approx. Priming Volume (ml) | Male Luer |
|---|---|---|---|

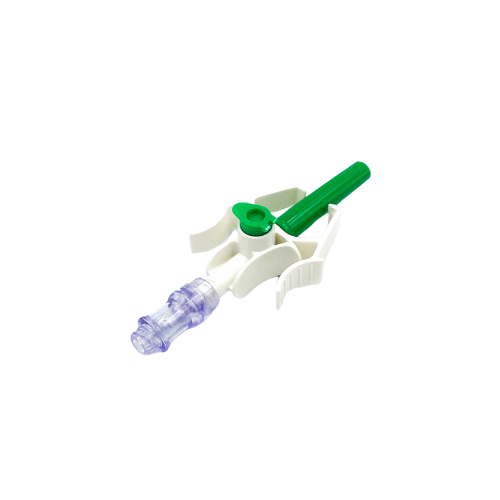

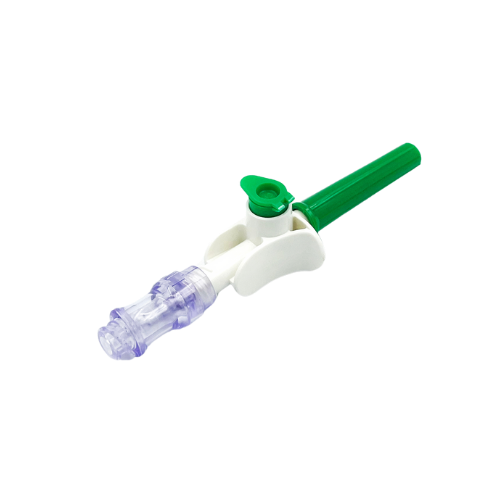

| CIC-007SN | Vented spike with needleless connector | - | Spike |
| CIC-008SN | Non-vented spike with needleless connector | - | Spike |
